3HP BALDOR 1750RPM 1811ATCZ TENV 180VDC MOTOR CD1803R

Catalog Number:  CD1803R
Spec Number:  T18R1102
Description:  3HP,1750RPM,TENV,1811ATCZ,180VDC,SHUNT WOUND
Ship Weight:  212 lbs.

APPLICATIONS: Designed for use with metals, paper, web processes, extruders, cranes, conveyors, packaging, printing, and machine tools.

FEATURES:

  • Field amps at 25*C
  • Field amps for high voltage connection
  • Unique laminated square frame for improved commutation on rectified power supplies
  • Class F rated insulation system
  • Service Line brushes with convenient wear indicating reference lines
  • Positive Lubrication System for longer bearing and motor life
  • F-3 mounting
  • Tach adaptable with thermostat Unique laminated square frame for improved commutation on rectified power supplies
Catalog Number: CD1803R
Specification Number: T18R1102
Horsepower: 3
Armature Voltage: 180
Field Voltage: 200
Full Load Amps - Armature: 14.10
Full Load Amps - Field: 1.17
RPM: 1750
Frame Size: DC 1811ATCZ
Service Factor: 1.0
Rating: N/A
Insulation Class: F
Form Factor: N/A
Enclosure: TENV
Baldor Type: N/A
DE Bearing: 30BC02JPP30A
ODE Bearing: 30BC02JPG30A
Electrical Specification Number: N/A
Mechanical Specification Number: N/A
Base: N/A
Mounting: F3
Tach Mounting Kit: N/A
Blower Kit: N/A
Filter Kit: N/A
Recommended SCR Control: N/A

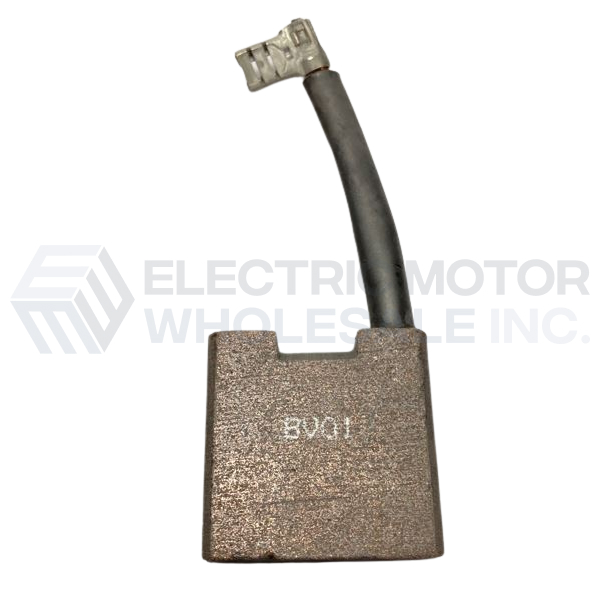

Brush Part Number: 419904-50A
3HP BALDOR 1750RPM 1811ATCZ TENV 180VDC MOTOR CD1803R
Click Image to Enlarge
Image for quick reference only
Manufacturer Part Number: CD1803R
Stock # CD1803R
Price: $5,237.00
Compare At: $9,906.00
