1/2HP BALDOR 1725RPM 56C TEFC 1PH D-SERIES BRAKEMOTOR CBL3518-D

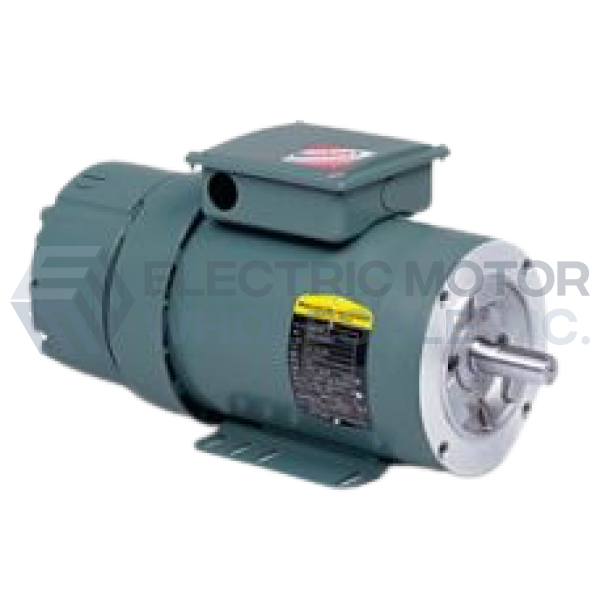

1/2HP BALDOR 1725RPM 56C TEFC 1PH D-SERIES BRAKEMOTOR CBL3518-D

Picture is for reference only.

Part Number:

CBL3518-D

Model/Spec Number:

35X212N406G1

Manufacturer:

Baldor Obsolete Motors
CBL3518-D BALDOR 1/2HP Single Phase D-Series Brake Motor is designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to request an agent review potential options.

Weight:

52 lbs

Dimensions:

12 x 30 x 12 inches

HS Code:

8501404040

UPC:

781568457085

Technical Details

Application:

Brakemotor

Output HP:

1/2

Output KW:

.37

Output RPM:

1725

Frame NEMA:

56C

Mount NEMA:

C-Face With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP44

Voltage:

115/208-230

Frequency (Hz):

60

CBL3518-D-InfoPacket

APPLICATIONS: Designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

  • UL/CSA recognized and CE certified
  • Dodge “D” Series brakes are spring set
  • Brakes are single phase with built-in rectifier to DC
  • Brakes have a manual release lever
  • D series brake motors can be universally mounted
  • Low profile top-mounted F3 conduit box
  • 2 year warranty
