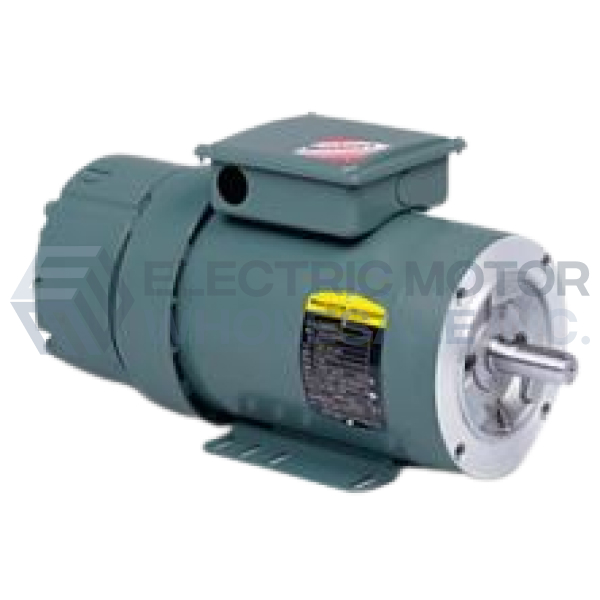

1.5HP BALDOR 1770RPM 145TY TENV 3PH D-SERIES BRAKEMOTOR BNM3554T-D

1.5HP BALDOR 1770RPM 145TY TENV 3PH D-SERIES BRAKEMOTOR BNM3554T-D


Part Number:

BNM3554T-D

Model/Spec Number:

35X164G178G2

Manufacturer:

Baldor Obsolete Motors
BNM3554T-D BALDOR 1.5HP D-Series Brake Motor is designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

65 lbs

Dimensions:

10 x 18 x 10 inches

HS Code:

8501.52.4000

UPC:

781568453193

Technical Details

Brand:

Baldor

Application:

Brakemotor

Output HP:

1.5

Output KW:

1.1

Output RPM:

1770

Frame Size NEMA:

145TY

Mount NEMA:

With Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP44

Voltage:

208-230/460

BNM3554T-D-InfoPacket

Obsolete-35X164M613H1

APPLICATIONS: Designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

  • UL/CSA recognized and CE certified
  • Dodge “D” Series brakes are spring set
  • Brakes are single phase with built-in rectifier to DC
  • Brakes have a manual release lever
  • 56-140 frames have low profile F3 top-mounted conduit box
  • D series brake motors can be universally mounted
  • Inverter ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 2 year warranty
