30HP BALDOR 1765RPM 286T TEFC 3PH BRAKEMOTOR BM4104T

30HP BALDOR 1765RPM 286T TEFC 3PH BRAKEMOTOR BM4104T

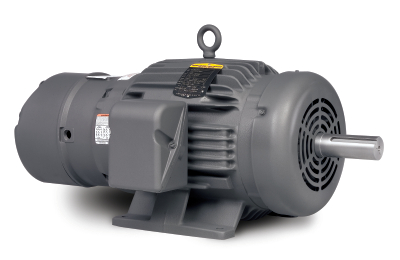

Picture is for reference only.

Part Number:

BM4104T

Model/Spec Number:

10E507X259H1

Manufacturer:

Baldor Obsolete Motors
BM4104T BALDOR 30HP Brake Motor is designed for machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

453 lbs

Dimensions:

16 x 26 x 16 inches

HS Code:

8501528040

UPC:

781568115169

Technical Details

Brand:

Baldor

Application:

Brakemotor

Output HP:

30

Output KW:

22.4

Output RPM:

1765

Frame Size NEMA:

286T

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP43

Voltage:

230/460

BM4104T-InfoPacket

APPLICATIONS: Machine tools, conveyors, door operators, speed reducers, any application requiring quick stop and hold.

FEATURES:

  • Cast Iron Frame
  • Spring set brake
  • Power off operation manual release
  • Resets automatically
  • Brakes internally connected to motor on 215T and smaller.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

453 lbs

Dimensions:

16 x 26 x 16 inches

HS Code:

8501528040

UPC:

781568115169
