1HP BALDOR 1740RPM 182 TEFC 3PH BRAKEMOTOR BM3603

1HP BALDOR 1740RPM 182 TEFC 3PH BRAKEMOTOR BM3603

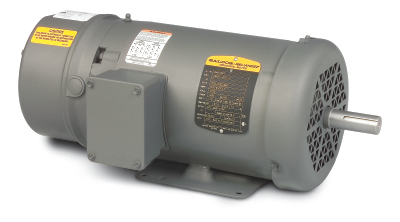

Picture is for reference only.

Part Number:

BM3603

Model/Spec Number:

35M527P676G1

Manufacturer:

Baldor Obsolete Motors
BM3603 BALDOR 1HP Brake Motor is designed for machine tools, conveyors, door operators, speed reducers, any application requiring quick stops and positive hold.

Item Discontinued

Click below to view suggested functional replacement.
See Replacement Item

Weight:

43 lbs

Dimensions:

10 x 18 x 10 inches

HS Code:

8501.51.6040

UPC:

781568114964

Technical Details

Brand:

Baldor

Application:

Brakemotor

Output HP:

1

Output KW:

0.75

Output RPM:

1740

Frame Size NEMA:

182

Mount NEMA:

With Base

Enclosure NEMA:

TEFC

Enclosure IEC:

IP22

Voltage:

208-230/460

BM3603-InfoPacket

APPLICATIONS: Machine tools, conveyors, door operators, speed reducers, any application requiring quick stop and hold.

FEATURES:

  • Spring set brake
  • Power off operation manual release
  • Resets automatically
  • Brakes internally connected to motor on 215T and smaller.
