1/4HP BALDOR 1725RPM 56 TENV 3PH BRAKE MOTOR BM3568

1/4HP BALDOR 1725RPM 56 TENV 3PH BRAKE MOTOR BM3568

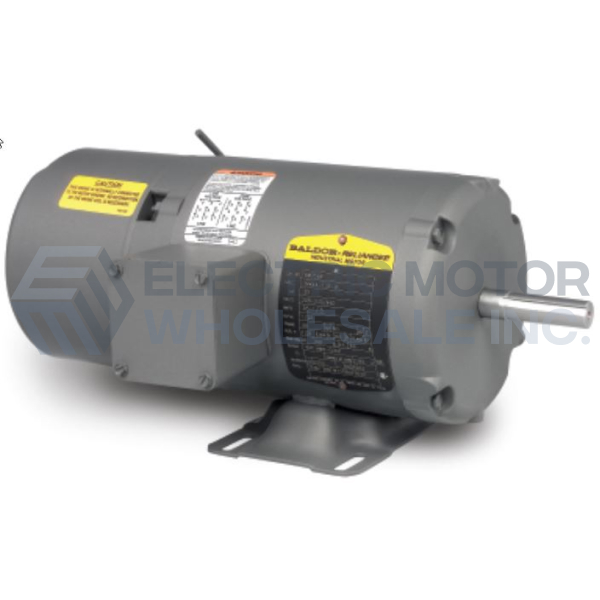

Picture is for reference only.

Part Number:

BM3568

Model/Spec Number:

34K44-139-B

Manufacturer:

Baldor Obsolete Motors
BM3568 BALDOR 1/4HP Brake Motor is ideal for use with machine tools, conveyors, door operators, speed reducers, and any application requiring quick stops and positive hold.

Item Discontinued

Click below to request an agent review potential options.

Weight:

26 lbs

Dimensions:

10 x 18 x 10 inches

HS Code:

8501514040

UPC:

781568114889

Technical Details

Brand:

Baldor

Application:

Brakemotor

Output HP:

1/4

Output KW:

0.19

Output RPM:

1725

Frame Size NEMA:

56

Mount NEMA:

With Base

Enclosure NEMA:

TENV

Enclosure IEC:

IP22

Voltage:

208-230/460

BM3568-InfoPacket

APPLICATIONS: Machine tools, conveyors, door operators, speed reducers, any application requiring quick stop and hold.

FEATURES:

  • Spring set brake
  • Power off operation manual release
  • Resets automatically
  • Brakes internally connected to motor on 215T and smaller.
