2HP BALDOR 1750RPM 145TY TEFC 3PH SHORT SERIES BRAKEMOTOR BM3558T-S

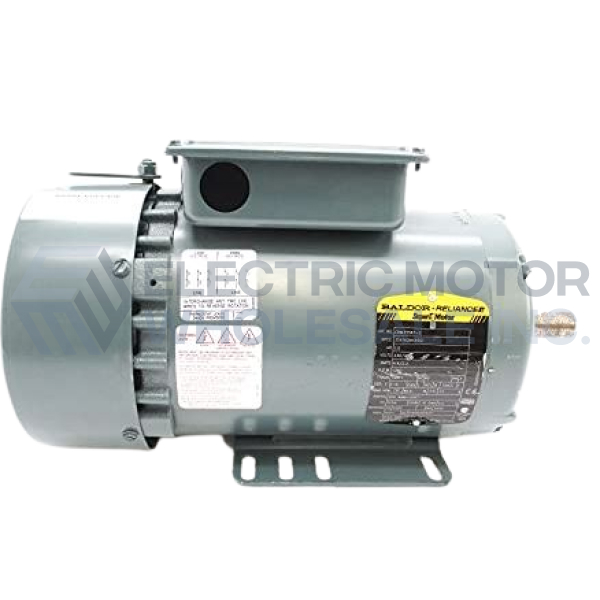

Picture is for reference only.

Part Number:

BM3558T-S

Model/Spec Number:

35X162N917H1

Manufacturer:

Baldor Obsolete Motors

BM3558T-S BALDOR 2HP Short Series Brake Motor is designed for use with unit and baggage handling, conveyors, packaging equipment, hoists, elevators and door operators.

Item Discontinued

Click below to view suggested functional replacement.

See Replacement Item

Shipping Details

Weight:

52 lbs

Dimensions:

10 x 18 x 10 inches

HS Code:

8501.52.4000

UPC:

781568452769

Technical Details

Specifications

Brand:	Baldor
Application:	Brakemotor
Output HP:	2
Output KW:	1.5
Output RPM:	1750
Frame Size NEMA:	145TY
Mount NEMA:	With Base
Enclosure NEMA:	TEFC
Enclosure IEC:	IP22
Voltage:	208-230/460

Documentation

BM3558T-S-InfoPacket

Obsolete-35X162P692H1

Additional Information

APPLICATIONS: Designed for use with unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

FEATURES:

UL/CSA recognized and CE certified
Dodge short series brakes are spring set
Brakes are single phase with built-in rectifier to DC
Brakes have a manual release lever
56-140 frames have low profile F3 top-mounted conduit box
Inverter ready
SSB brake motors can be universally mounted
143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
2 year warranty
