15HP BALDOR 3450RPM 3PH TEFC ARBOR SAW MOTOR ASM7515

15HP BALDOR 3450RPM 3PH TEFC ARBOR SAW MOTOR ASM7515

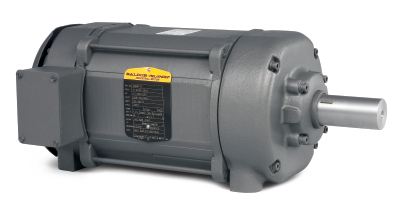

Picture is for reference only.

Part Number:

ASM7515

Model/Spec Number:

7-2000-5028

Manufacturer:

Baldor Obsolete Motors
ASM7515 BALDOR 15HP Arbor Saw Electric Motor is designed for heavy duty circular saw applications, ideally used with many machine tools.

Item Discontinued

Click below to request an agent review potential options.

Weight:

146 lbs

Dimensions:

16 x 20 x 16 inches

HS Code:

8501.52.4000

UPC:

781568122174

Technical Details

Brand:

Baldor

Application:

Arbor Saw

Output HP:

15

Output KW:

11.2

Output RPM:

3450

Enclosure NEMA:

TEFC

Voltage:

208-230/460

Frequency (Hz):

60

Inverter Rating:

Non Compatible

Service Factor:

1.0

Product Information Packet

APPLICATIONS: Designed for heavy duty circular saw applications, ideally used with many machine tools.

FEATURES:

  • 60 Minute Duty Cycle
  • Low profile for maximum blade cutting depth
  • Supplied with keyway and unthreaded shaft suitable for right or left threading
  • Double row ball bearings for maximum shaft stability in precision woodworking applications
  • Custom threading available
