15HP BALDOR 3450RPM 3PH TEFC ARBOR SAW MOTOR ASM6215

15HP BALDOR 3450RPM 3PH TEFC ARBOR SAW MOTOR ASM6215

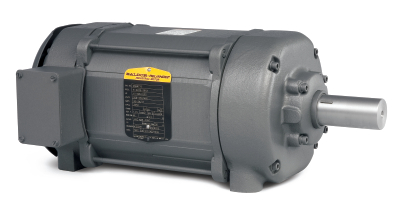

Picture is for reference only.

Part Number:

ASM6215

Model/Spec Number:

6-2978-2963

Manufacturer:

Baldor Obsolete Motors
ASM6215 BALDOR 15HP Arbor Saw Electric Motor is designed for heavy duty circular saw applications, ideally used with many machine tools.

Item Discontinued

Click below to request an agent review potential options.

Weight:

117 lbs

Dimensions:

16 x 20 x 16 inches

HS Code:

8501524000

UPC:

781568122167

Technical Details

Brand:

Baldor

Application:

Arbor Saw

Output HP:

15

Output KW:

11.2

Output RPM:

3450

Enclosure NEMA:

TEFC

Voltage:

208-230/460

Frequency (Hz):

60

Inverter Rating:

Non Compatible

Service Factor:

1.0

ASM6215-InfoPacket

APPLICATIONS: Designed for heavy duty circular saw applications, ideally used with many machine tools.

FEATURES:

  • 60 Minute Duty Cycle
  • Low profile for maximum blade cutting depth
  • Supplied with keyway and unthreaded shaft suitable for right or left threading
  • Double row ball bearings for maximum shaft stability in precision woodworking applications
  • Custom threading available
