50HP BALDOR 1185RPM 405U TEFC 3PH MOTOR AEM4312-4

Catalog Number:  AEM4312-4
Description:  50HP,1185RPM,405U,TEFC,3PH,60HZ,AUTOMOTIVE
Ship Weight:  1193 lbs.

APPLICATIONS: Designed for use in plants requiring Automotive Approved Motors on pumps, compressors, fans, conveyors, machine tools and other applications.

FEATURES:

  • Approved by major US automobile manufacturers
  • Meets efficiency times power factor requirements per GM7EQ
  • All cast iron construction
  • Regreasable double shield ball bearings
  • Shaft slinger on both ends of motor
  • Stainless steel nameplate
  • Epoxy paint
  • Suitable for 65ºC ambient 1.00 Service Factor or 1.15 Service Factor, 40ºC ambient
  • Meets automotive requirements for sound levels
  • Meets GM for minimum efficiency times power factor requirements per GM7EHQ
AMBIENT-TEMPERATURE: 40
FL AMPS: 58.2
BRG-DE-AFBMA: 80BC03JPP30A
BRG-ODE-AFBMA: 80BC03JPP30A
DESIGN CODE: B
DUTY: CONT
FL EFFICIENCY: 93
FL EFFICIENCY: 94.1
ENCLOSURE: TEFC
FRAME: 405U
HERTZ: 60
INSULATION CLASS: F
KVA-CODE: G
SPEED [rpm]: 1185
MOTOR-WEIGHT: --
CATALOG NUMBER: AEM4312-4
SPEC. NUMBER: P40G382
NP-LABEL: --
NP-LABEL: --
NP-LABEL: --
NP-LABEL: --
NP-LABEL: --
NP-LABEL: --
NP-LABEL: --
NP-LABEL: --
NP-LABEL: --
NP-LABEL: --
OUTPUT [hp]: 50
PHASE: 3
SERIAL-NUMBER: --
SERVICE FACTOR: 1.15
TYPE: P
VOLTAGE: 460
AG-BLANK-LINE-1A: CAT# AEM4312-4

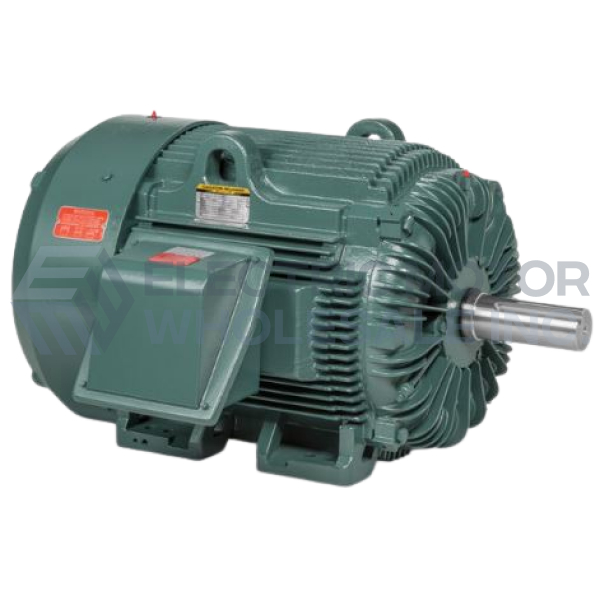

50HP BALDOR 1185RPM 405U TEFC 3PH MOTOR AEM4312-4
Click Image to Enlarge
Manufacturer Part Number: AEM4312-4
Stock # AEM4312-4
Price: $8,068.00
Compare At: $14,613.00
