1.5HP BALDOR 1750RPM 184 TEFC 3PH MOTOR AEM3686-4

Catalog Number:  AEM3686-4
Description:  1.5HP,1750RPM,184,TEFC,3PH,60HZ,AUTOMOTIVE
Ship Weight:  96 lbs.

APPLICATIONS:Designed for use in plants requiring Automotive Approved Motors on pumps, compressors, fans, conveyors, machine tools and other applications.

FEATURES:

  • Approved by major US automobile manufacturers
  • Meets efficiency times power factor requirements per GM7EQ
  • All cast iron construction
  • Regreasable double shield ball bearings
  • Shaft slinger on both ends of motor
  • Stainless steel nameplate
  • Epoxy paint
  • Suitable for 65ºC ambient 1.00 Service Factor or 1.15 Service Factor, 40ºC ambient
  • Meets automotive requirements for sound levels
  • Meets GM for minimum efficiency times power factor requirements per GM7EHQ
FL AMPS: 2.2
BEARING-DRIVE-END: 6206
BEARING-OPP-DRIVE-END: 6205
DESIGN CODE: B
DOE-CODE: --
FL EFFICIENCY: 82
FL EFFICIENCY: 85
ENCLOSURE: TEFC
FRAME: 184
GREASE: POLYREX EM
CATALOG NUMBER: AEM3686-4
HERTZ: 60
INSULATION-CLASS: F
KVA-CODE: M
SPEED [rpm]: 1750
OUTPUT [hp]: 1.5
PHASE: 3
POWER-FACTOR: 77
RATING: 65C AMB-CONT
SERIAL-NUMBER: --
SERVICE FACTOR: 1.00
SPEC. NUMBER: 06F062W402
VOLTAGE: 460

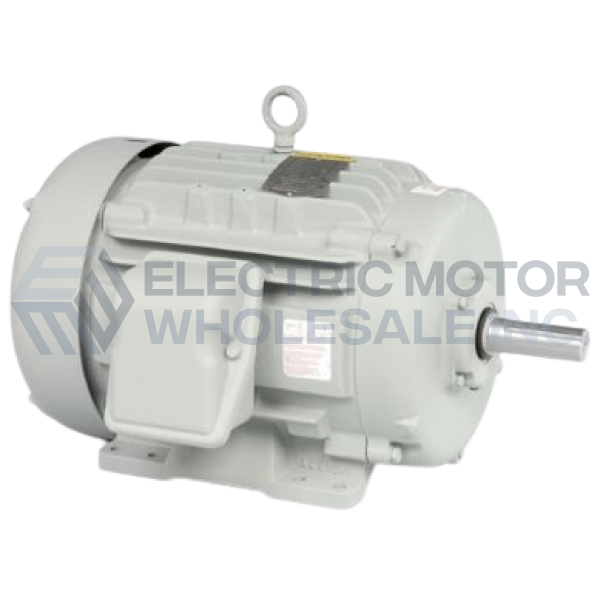

1.5HP BALDOR 1750RPM 184 TEFC 3PH MOTOR AEM3686-4
Click Image to Enlarge
Manufacturer Part Number: AEM3686-4
Stock # AEM3686-4
Price: $894.00
Compare At: $1,539.00
