KBPC-240D 1/50-2HP SCR NEMA 4X DC DRIVE 9338

Cat Number:  KB9338 - FREE Ground Shipping Inside Continental USA
Mod Number:  KBPC-240D
Input Voltage:  115/208-240VAC,1PH INPUT
Output Voltage:  90/180VDC
Ship Weight:  4 lbs.

KBPC240D Is a SCR DC Motor Speed and Torque Control is designed for applications requiring wash-down watertight integrity. Its housing is ruggedly constructed of die cast aluminum which is protected with an acrylic coating for the ultimate in corrosion resistance. All switches are sealed with rubber boots and the main speed potentiometer contains a shaft seal.
KBPC-240D state-of-the-art electronics include short circuit and transient protection to provide the ultimate in reliability. Electronics overload protection is also provided which prevents motor burnout and demagnetization of PM motors. The control can be operated in either the speed or torque mode via a jumper selection. The current range, which is also jumper selectable, eliminates the necessity for calibration of IR compensation and current limit for most applications. The KBPC also contains jumper selections for AC line voltage (230/115), DC armature voltage (180/90) and feedback type (armature/tachometer).

* Direct replacement for Baldor BC154, DART 6Z386

Standard features include Armature Fusing, Electronic Start/Stop and LED Indicator Array for “Power On,” “Stop” and “Overload.”

Although the KBPC is factory set for most applications, a variety of trimpots allows adjustment of the following parameters: MIN and MAX speed, Acceleration, Deceleration, Current Limit, IR Comp, and Timed Current Limit. The drive offers the ultimate in flexibility with the availability of several customer installed options. These include: Anti Plug Reversing Module, Forward-Brake-Reverse with Hesitation Feature, Run Stop-Jog, On/Off AC Line Switch, Input Signal Isolation, and Electronic Potentiometer. A complete instruction manual is included.

Optional Features:

  • Forward-Brake-Reverse Switch with hesitation feature (P/N 9339). Includes switch and prewired dynamic brake resistor.

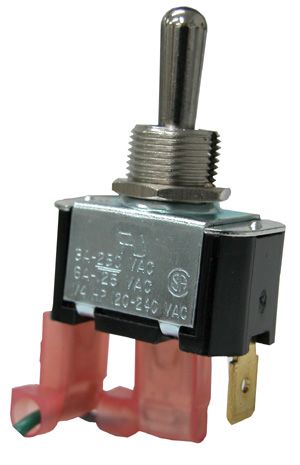

  • Run-Stop-Jog Switch (P/N 9340)

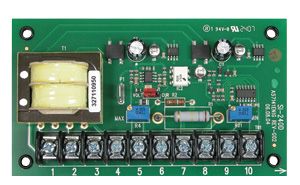

  • Signal Isolator, KBSI-240D (P/N 9431)

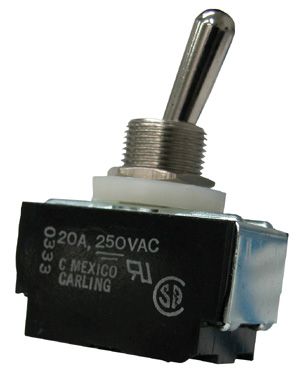

  • On/Off AC Line Switch (P/N 9341)
  • White Case (FDA) (P/N 9342)
  • Electronic Pot, KBEP-240D (P/N 9108)
  • Anti Plug Reversing Module (P/N 9378)
  • Auto/Manual Kit (P/N 9377)
KBPC-240D 1/50-2HP SCR NEMA 4X DC DRIVE 9338
Click Image to Enlarge
Picture is for quick reference only
Manufacturer Part Number: KBPC-240D
Stock # KB9338
Price: $198.00
Compare At: $279.00
